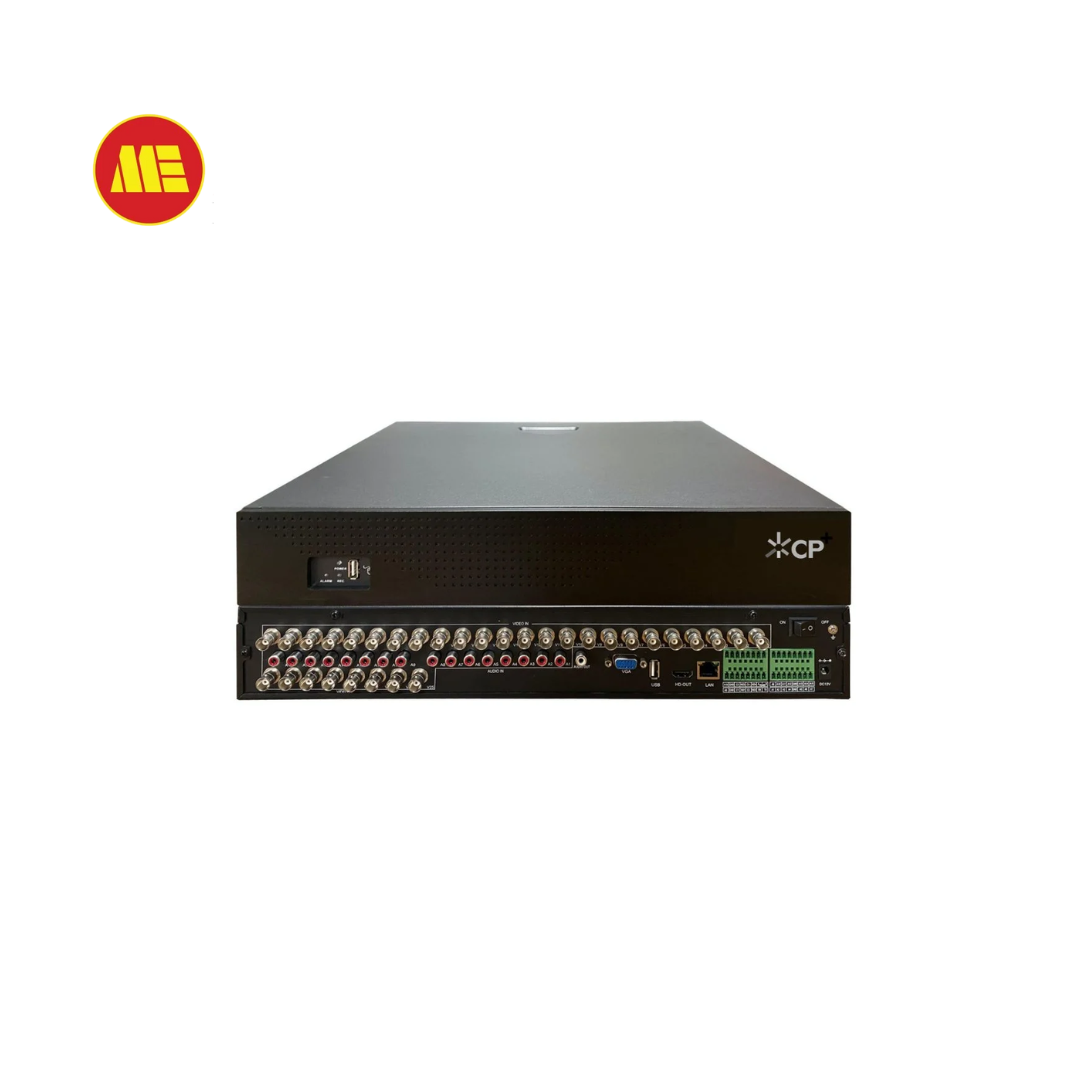

XVR-32S: 32CH H.265X 5M-N 5 IN 1 XVR (Support 4 HDD) Specifications
Here are the specifications of XVR-32S: 32CH H.265X 5M-N 5 IN 1 XVR (Support 4 HDD) below:
System
- Operating System: Embedded LINUX
- Model: XVR-32S
Video
- Encoding Format: H.265
- Monitor Quality: VGA, HDMI
- Preview Ability: 325M-N@12fps (5 in 1)
- Encode Ability: 325M-N @6fps (4 in 1)
- Decode Ability: 16*5M-N@6fps (4 in 1)
- Multi-mode Input:
- Analog: 16*5M-N@6fps
- Hybrid: 165M-N@12fps (Coaxial)+ 161080P@25fps (Network), 245M-N@6fps (Coaxial)+ 81080P@25fps (Network), 85M-N@12fps (Coaxial)+ 241080P@25fps (Network)
Network: 32*1080P@25fps
Motion Detection: Each screen can be set to 192 (16 * 12) detection areas; Multi-level sensitivity can be set (Limited local channel)
Smart Function: 1CH Item care,1CH Perimeter detection,Human detection(No human detection frame)
Audio
- Audio: 16CH Coaxial Audio (Specified camera only) or 16ch Analog audio
- Intercom Support
- Audio Input: 16CH AV Ports
- Output: 1CH AV Ports
Record & Playback
- Record Mode: Manual>Alarm>Motion detection>Timing
- Local Playback: 16CH (analog input mode)
- Search Mode: Search by time, calendar, event, channel
Storage & Backup
- Video Storage: HDD, Network
- Backup Mode: Network, USB hard disk, USB burner, SATA burner
Network
- Net Connection Support
- Network Protocol: TCP/IP, DHCP, DDNS, POE, SMTP, RTSP, NTP
- ONVIF Support (connect the IPC)
- Wireless: 3G/4G, Wifi (extend via USB)
- Browser: IE/Chrome/Firefox/Safari
- APP Support: iPhone, Android
- PC Support
External Interface
- Video Input: 32CH BNC
- Output: 1CH VGA, 1ch HDMI
- Audio I/O: 16/1
- Alarm I/O: 8/1
- Network Interface: RJ45 10M/100M self-adaption
- RS485 Support
- PTZ Control: Support kinds of PTZ protocols
- USB: 2* USB 2.0 ports
- HDD: 4*SATA ports (Max 8TB/per)
General
- Language: China/English (Available in more than 20 languages)
- Current Supply: 12V/6A
- Power Consumption: <15W (without HDD)
- Temperature: -10℃ – +60℃
- Working Humidity: 10%—90%, Atm:86kpa—106kpa
